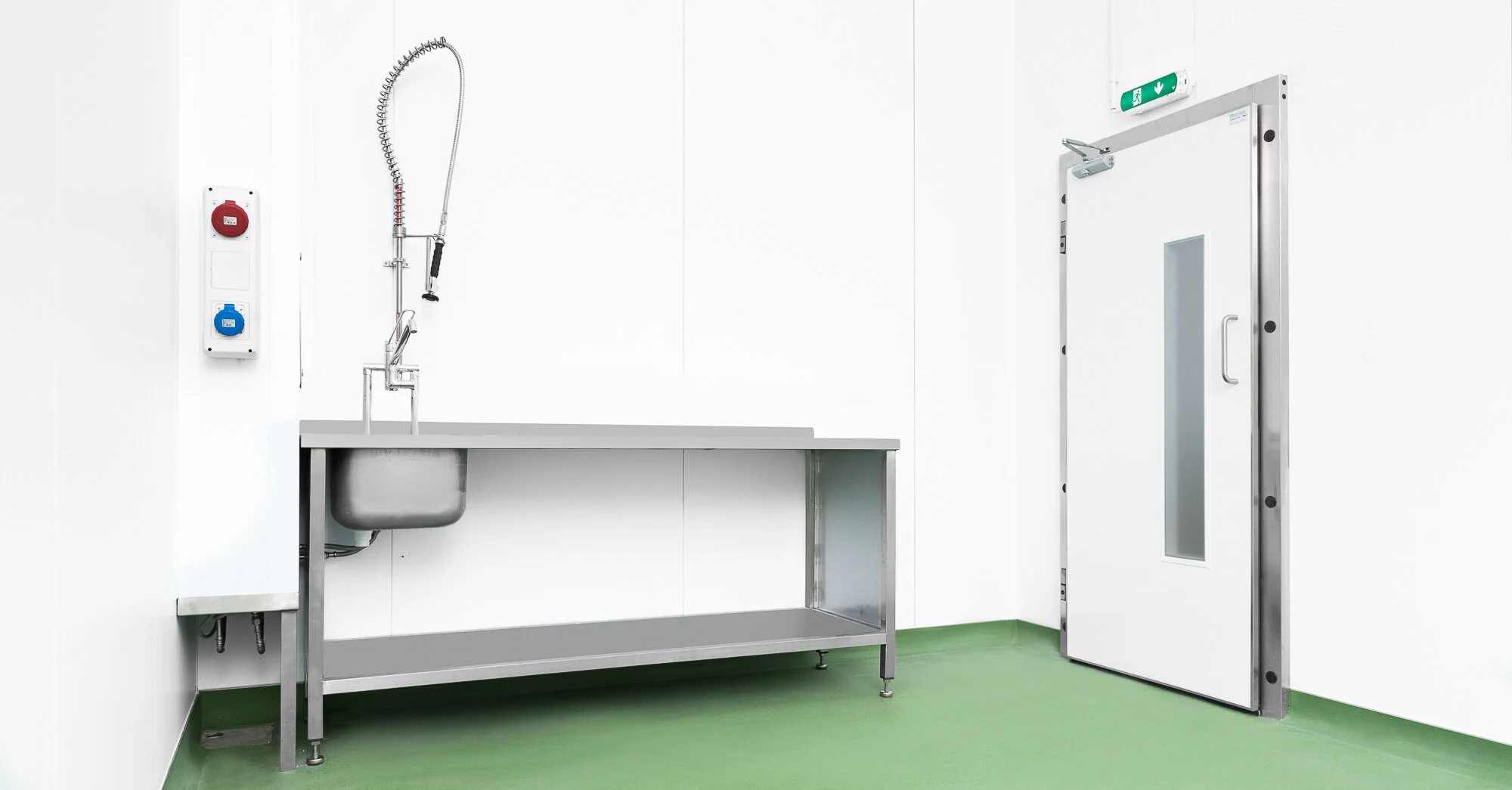

HINGED DOORS
TDH55, TDH75, TDH90
Our hinged doors with its combination of robust design and superb workmanship guarantees to deliver a door with the highest standards in hygiene and build quality. The fully rebated detail insures a perfect air temperature and hygiene seal. Varieties in frame designs and steel finish combined with variable door sizes all ensure we can supply individually tailored doors.
Download a PDF brochure here, or scroll to see the technical specification and more images.
Technical Specification
Door Leaf
Rebated leaf
60mm door thickness for ambient grade
75mm door thickness for chill grade
90mm door thickness for freezer grade
Cold bridging prevented by high density insulated core
Snap in silicone rubber gasket and thermal break
Finish
Stainless steel with circular polished finished and matt brush finish
Plastisol HP200 or PVF2 in a variety of colours
Food safe laminated steel finish, 0.6mm thickness
Built In Frame
Frame clad in the same finish as the door leaf
PVC extruded or PE 500 polycarbonate core
For installation in masonry, wall anchors are provided
Face Fixed Frame
Frame clad in the same Finish as the door leaf
PVC extruded or PE 500 polycorbonate core
For large doors 10mm fixing bolts and Buffalo T nuts are supplied
Fittings
The door is fitted with stainless steel lever handle
Locking by Euro cylinder as standard
Stuv or Fermod lock with internal release for chill or freezer grade
Flush fitted or face fitted rising hinges made of stainless steel or enamel finished steels
Door can be fitted with a pull handle, push plate and door closer

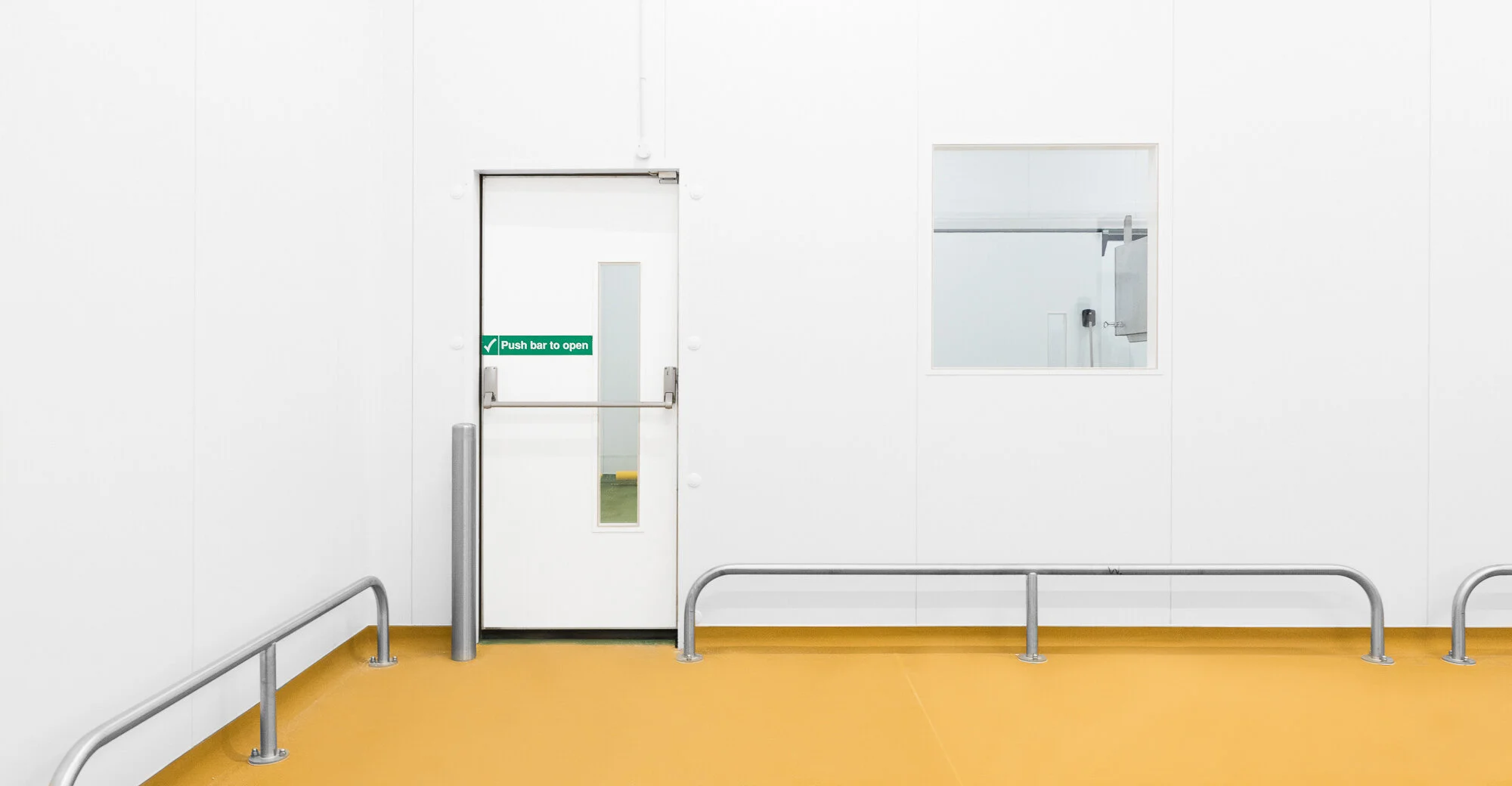

Doors can also be fitted with panic bar with or without external access
Options
Double leaf version with 'one active' or 'both active'
Black frame
Kick plates
Vision Panel
Variety of ironmongery
